Print Server Interface
29
Print Server Interface
The LineJet Print Server interface card at the rear of the printer has two
indicator lights and two dipswitches, as shown in Figure 4.

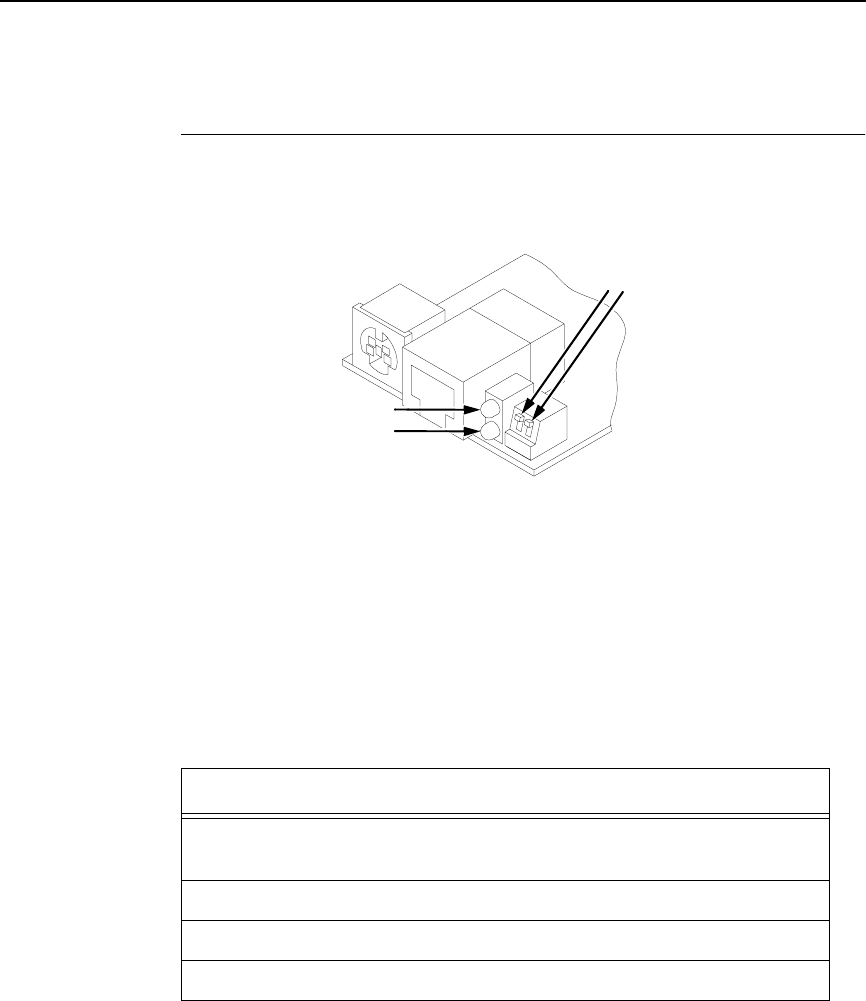

Figure 4. Status Indicator Lights and Dipswitches
Run and Auto Reset Modes
Run Mode is the normal operating state of the LineJet Print Server. Auto
Reset mode is entered when the watchdog timer is triggered and the Print
Server resets itself. In either mode, the STAT LED flashes at a varying rate,
depending on whether the unit IP address is configured. The Run Mode and
Auto Reset Mode indicator descriptions are given in Table 2.
Table 2. Indicator Modes
STAT Indication Description
OFF flashes on once per second Normal Mode, IP address
configured
OFF flashes on twice per second IP address not configured
ON flashes off once per second Download (MOS)
ON flashes off twice per second Error
STAT (System Status)
NET (Data to Network)
1
2
Shown in OFF
(default) position
Dipswitches
