Installation
22

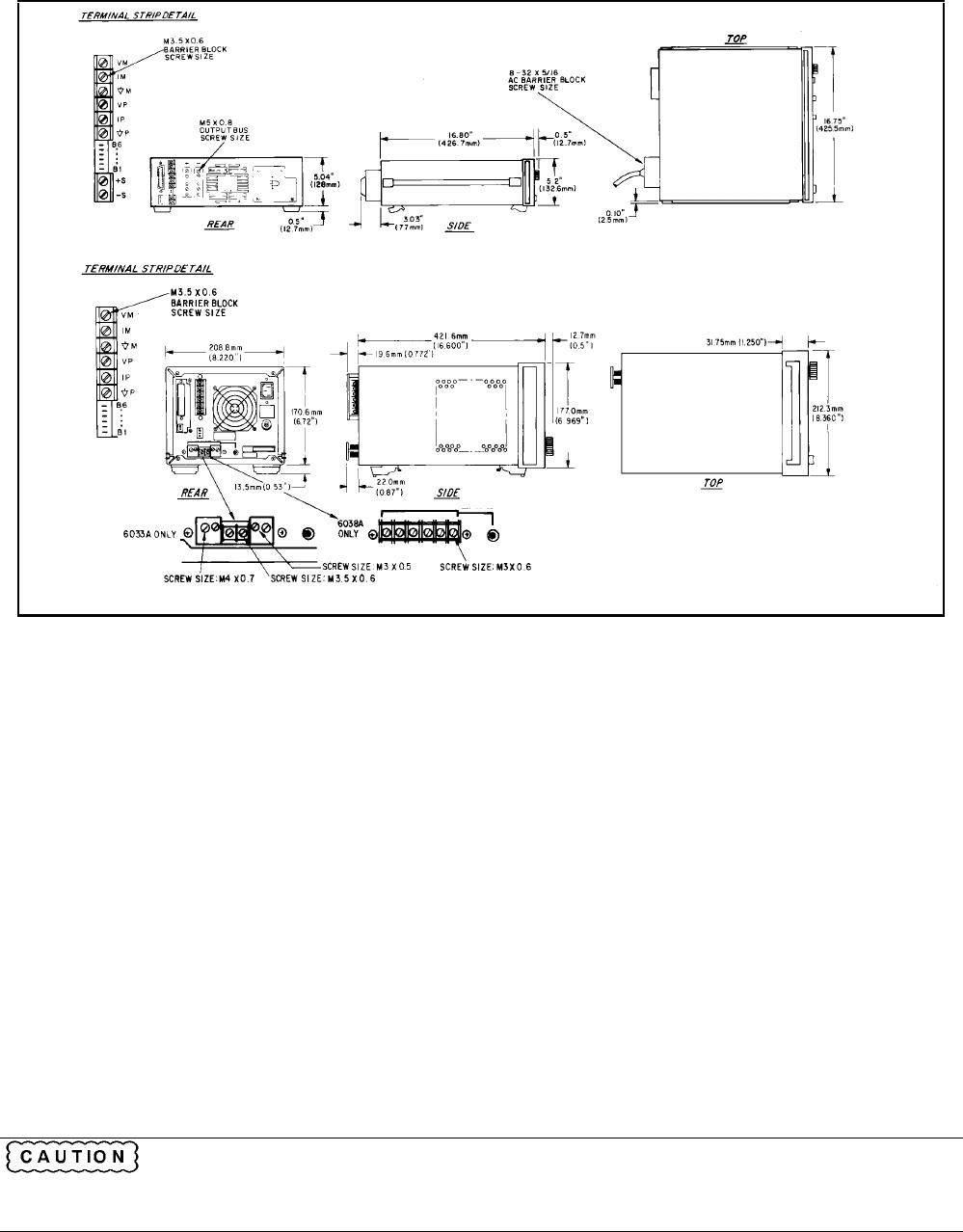

Figure 2-1. Outline Diagram
Bench Operation
The supply cabinet has plastic feet, which are shaped to ensure self aligning when stacked with other Agilent Technologies
System II cabinets.
Rack Mounting
The supply can be mounted in a standard 19-inch rack enclosure. Rack mounting accessories for this unit are listed in the
ACCESSORIES paragraph in Section I. Complete installation instructions are included with each rack mounting kit.
Support rails are also required for rack mounting. These are usually supplied with the system cabinet.
Input Power Requirements
This supply may be operated from a nominal 120 V, 220 V or 240 V single-phase ac power source (48-63 Hz). The input
voltage range and input current required for each of the nominal inputs are listed in Table 1-1. A label on the rear panel
indicates the nominal line voltage for which the supply was set at the factory. If necessary, the user can convert the
instrument from one line voltage option to another by following the instructions in the Line Voltage Option Conversion
section of this chapter.
Power Connection
Connection of this supply to an ac power source should be done only by an electrician or other
qualified personnel. Before connecting the supply to the ac power source, check the label on the rear
panel to ensure that the supply is set for the ac voltage to be used. If necessary, convert the supply
from one line voltage to another by following the instructions under “Line Voltage Conversion.”
