EPSON FX-2180 Service Manual Chapter 4 Disassembly and Assembly

4-2

4.1.3 Specifications for Screws

Table 4-3 lists the abbreviations used in this chapter for small parts, such

as screws and washers.

Table 4-3. Screw Types and Abbreviations

Abbreviation Part Name

CPS Cross-recessed pan head S-tight screw

CBB Cross-recessed bind head B-tight screw

CBS Cross-recessed bind head S-tight screw

CBN Cross-recessed bind head N-tight screw

CBC Cross-recessed bind head C-lamitite screw

CBA Cross-recessed bind head A-lamitite screw

CB(O) Cross-recessed bind head with outside-toothed lock

washer

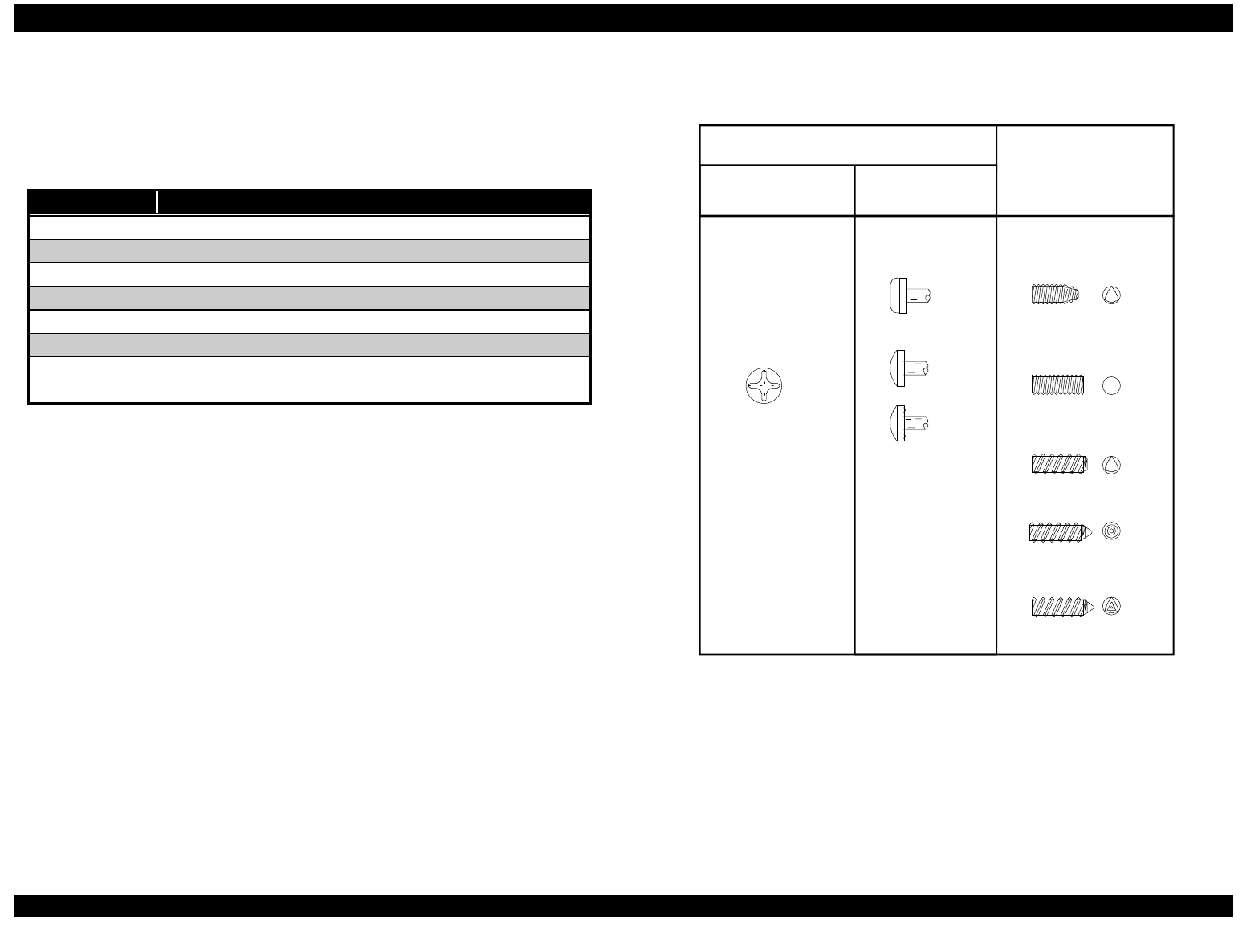

Table 4-4 illustrates the various screw types.

Table 4-4. Screw Types

Cross-recessed head

Bind

Normal

Top Side

(with notch)

S-tight

B-tight

C-lamitite

A-lamitite

Pan

Body

Head
