LUBRICATION

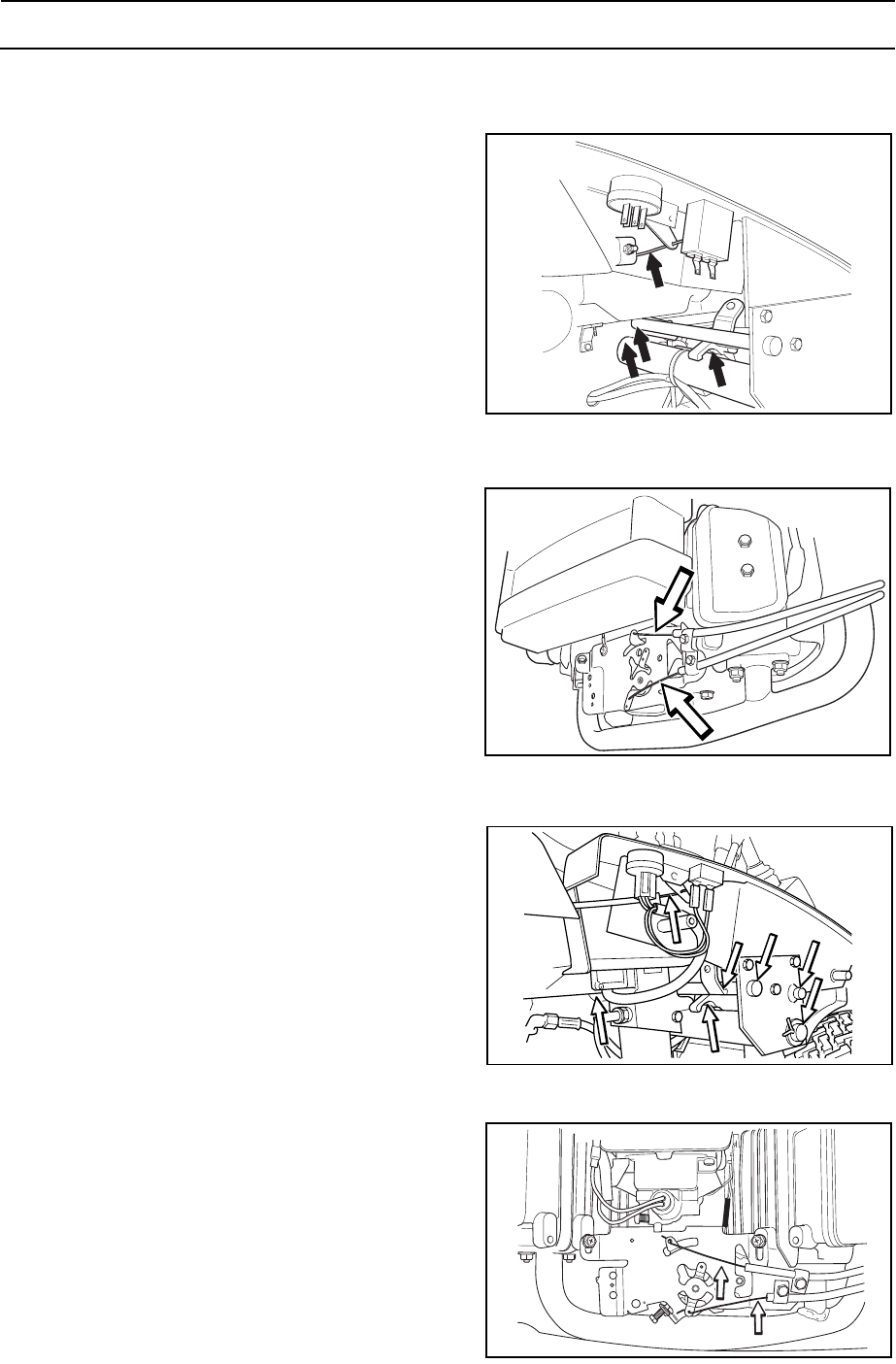

9. Throttle and choke cables,
lever bearings
PF 18
Remove the right side cover on the lever housing
(3 screws) and open the engine cover. Lubricate the
cables’ free ends with the oil can, even those by the
carburettor. Move the controls to the end points and
lubricate again.
Lubricate the joints, catches, and bearings for the
cutting unit’s control levers with an oil can.
Note risk for incorrect assembly: The fine threaded
screw on the side cover should be fitted from the
outside.
Replace the lever housing’s side cover.
PF 21
Remove the right side cover on the lever housing
(2 screws) and open the engine cover. Lubricate the
cables’ free ends with the oil can, even those by the
carburettor. Move the controls to the end points and
lubricate again.
Lubricate the joints, catches, and bearings for the
cutting unit’s control levers with an oil can.
Replace the lever housing’s side cover.
8009-157
PF 18
6020-050
PF 18
8009-349
PF 21
8009-178
PF 21
