60133 revG Page 24 of 38

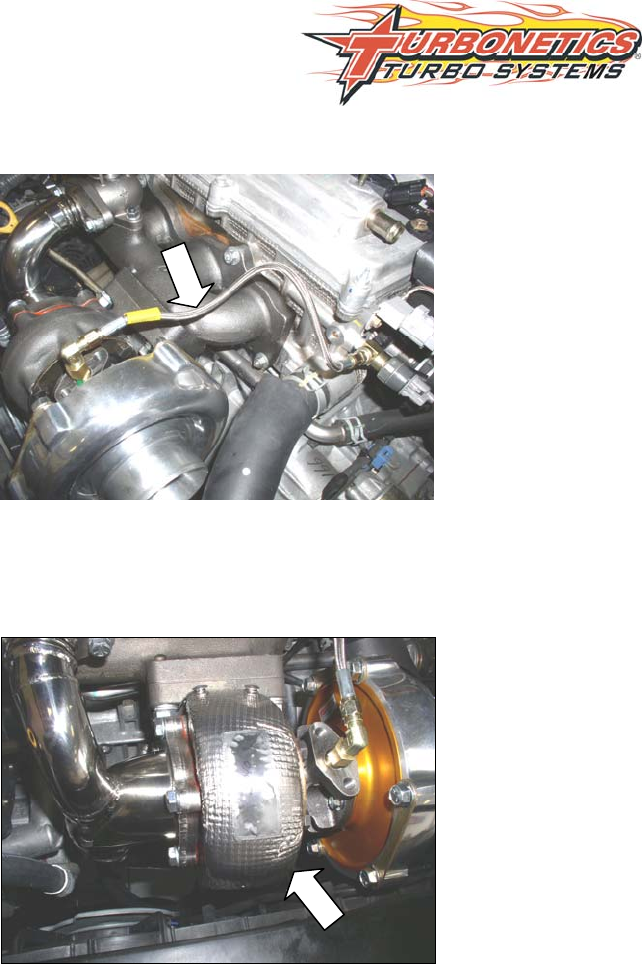

FIGURE 59

Mounting Turbo Heat Shield

1. Wrap the supplied heat shield (P/N #31040) onto the turbine housing. SEE FIGURE 58

FIGURE 58

2. Using safety wires, secure the heat shield to the turbine housing.

Mounting the Intercooler and Routing the Boost Tubes

1. Slide the intercooler (P/N #5-340) in place. The top mount of the intercooler should line up with the left

side of the center core support reinforcement bar.

2. Bolt the intercooler to the center support bar using the supplied M10-1.25 bolt (P/N #31003). A flat

washer should be on the bolt head side, while on the other side, it should have a flat, lock washer, and

the nut, in that respective order. SEE FIGURE 59
