60133 revG Page 22 of 38

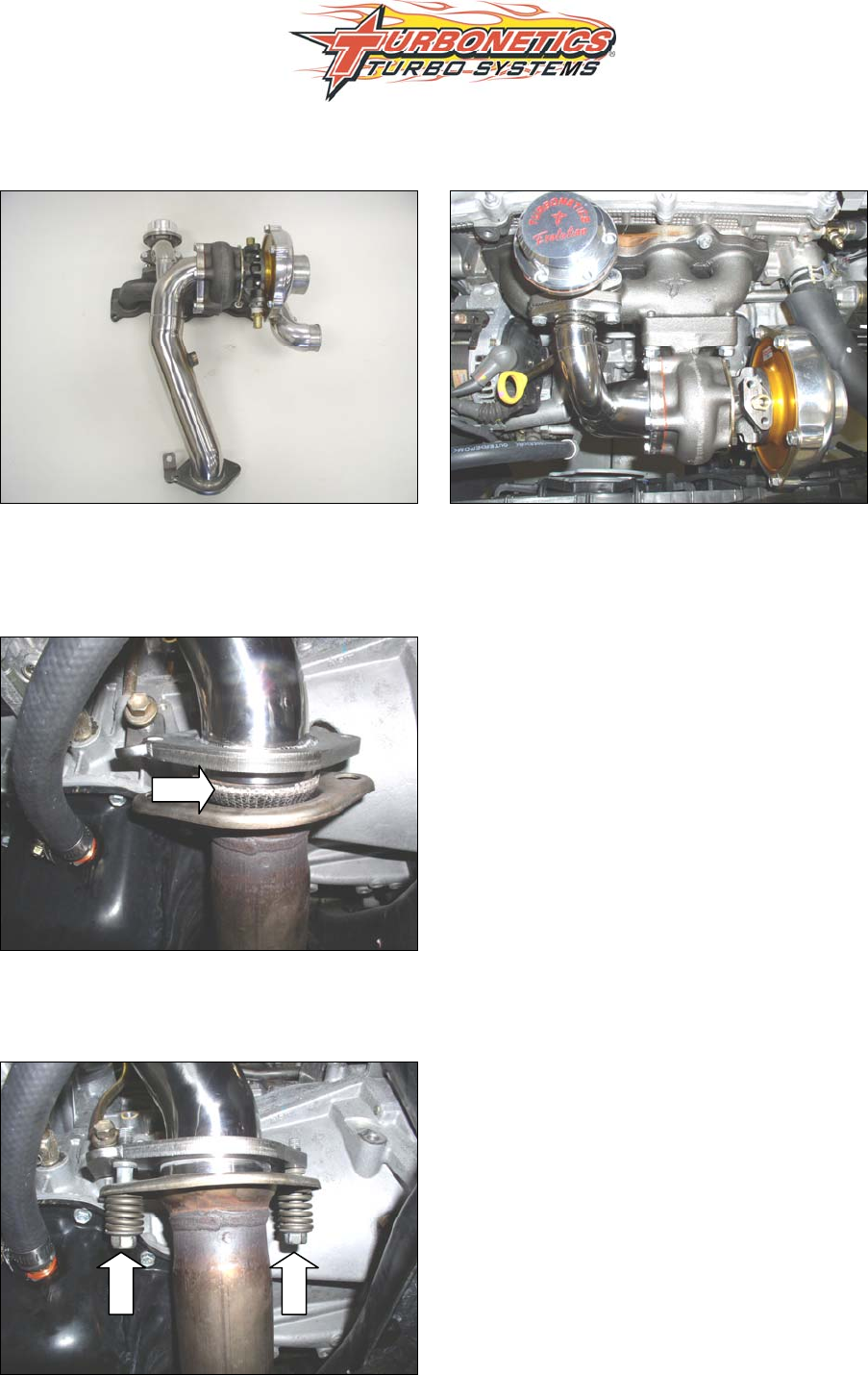

Mounting the Turbo Assembly to the Engine
1. Bolt the turbo and manifold assembly onto the head. SEE FIGURE 52 & 53
FIGURE 52 FIGURE 53
2. Finger tight all five bolts that mount the manifold to the head. Make sure the factory exhaust gasket is re-
installed.
3. Slide the factory exhaust donut onto the new supplied downpipe. SEE FIGURE 54
FIGURE 54
4. Bolt the factory secondary downpipe to the new downpipe using the original spring loaded bolts finger
tight only. Make sure the bolt and spring is assembled correctly. SEE FIGURE 55
FIGURE 55
