250 SANRAD V-Switch User Manual

10232

Client

s

Disk 1 Disk 2

Disk 4Disk 3

V Switch

Manager and

Host Station

RS232

Connection

Fibre Channel

Connection

Windows 2000

Microsoft Initiator

1

2

1 Gbit Ethernet,

RJ45 Copper

Connection

3

JBOD 1

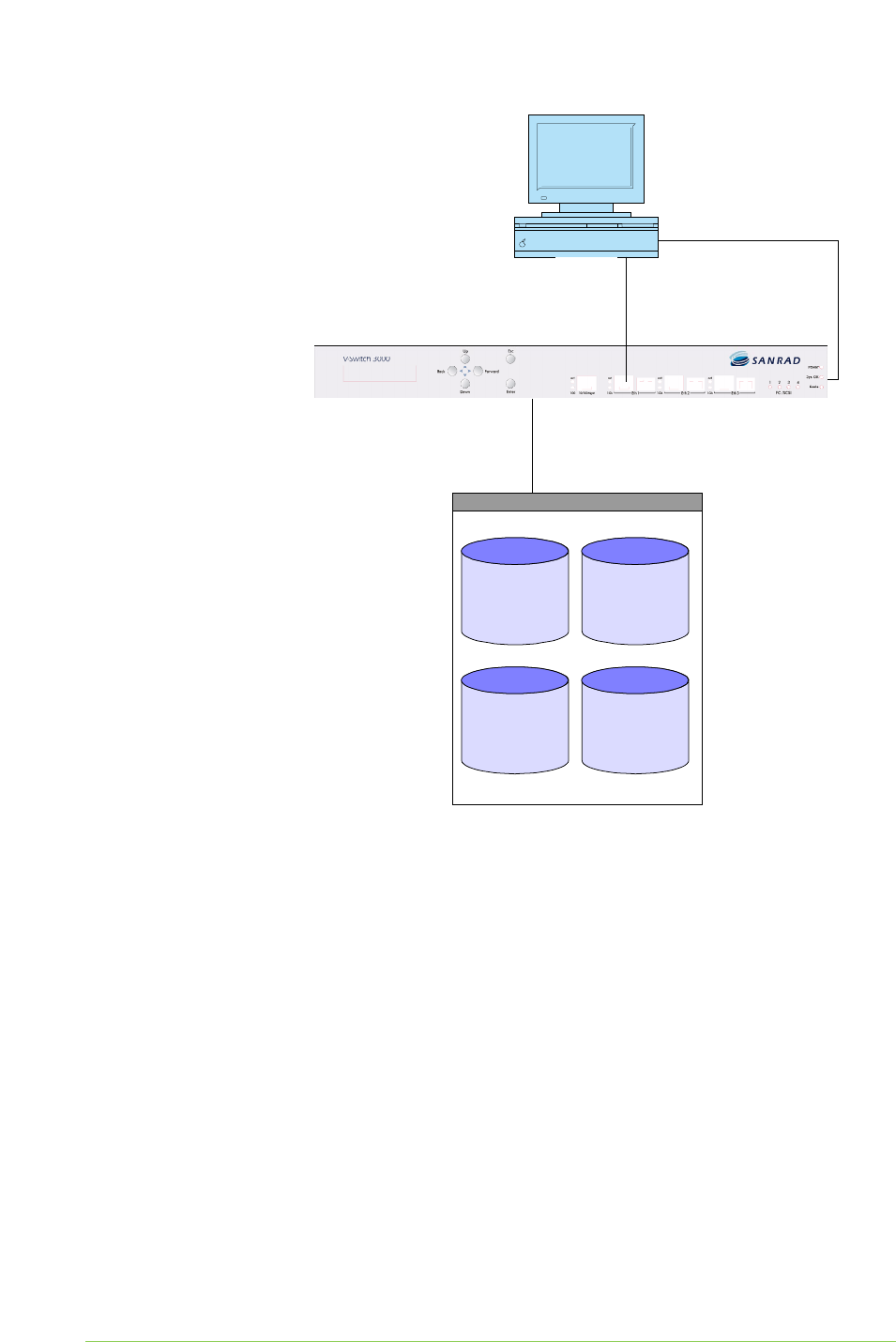

Figure 98. System Overview

STEP 2. P

OWER UP STORAGE DEVICE

Power up the JBOD appliance first to allow the V-Switch to register it in its

network scan.

STEP 3. POWER UP V-SWITCH

Connect the power cord to the V-Switch and then to the electric socket. Turn

the V-Switch on. The V-Switch powers up. The fan assembly is running and

the LCD panel displays:

V-Switch 3000

Status: OK

STEP 4. C

ONFIGURE CONSOLE

You are using your PC as both the V-Switch’s management station and the

network host station.

Before you can open a CLI session via the RS232 connection, your console must

be configured to allow communication between the two devices.
