5. WEB MANAGEMENT
Before login the Web interface of GSW-2416SF, please setup the “IP Address” with local serial console port (RS232 port)
and use this IP address to configure GSW-2416SF through the Web interface.
Or modify your PC’s IP domain to the same with GSW-2416SF then use the default IP address (192.168.0.100) to remote
configure GSW-2416SF through the Web interface.
5.1 Login in to the Switch
To access the Web-browser interface you must first enter the user name, the default user name is "admin" without
password. You will see the following screen comes out on the Web browser program:

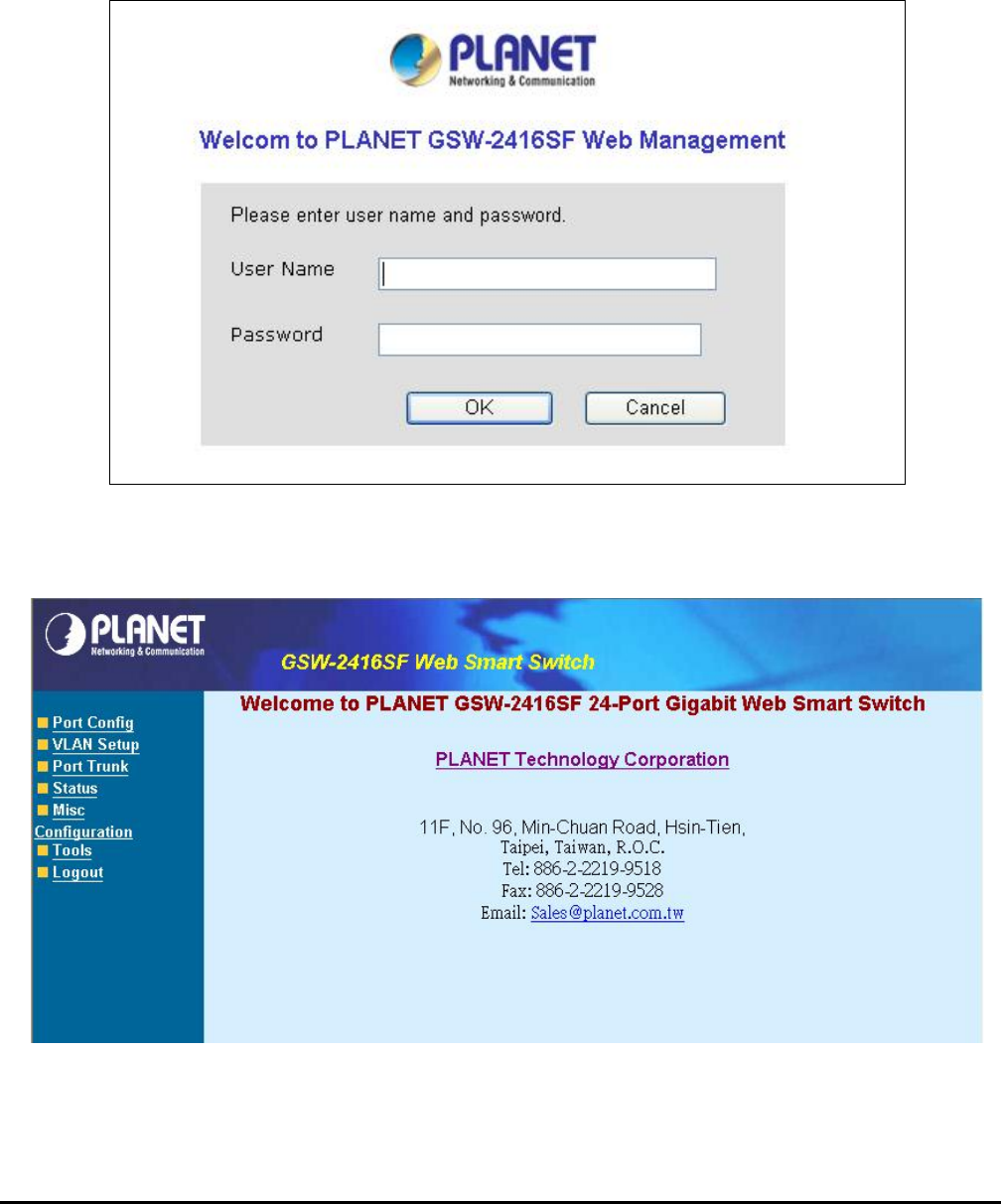

Figure 5-1 The GSW-2416SF login Web Page screen
After the User name and Password is entered, you will see the web main menu screen.
Figure 5-2 The web main menu screen of GSW-2416SF
EM-GSW2416SFv1 - 35 -
