Cabling and
connecting
21

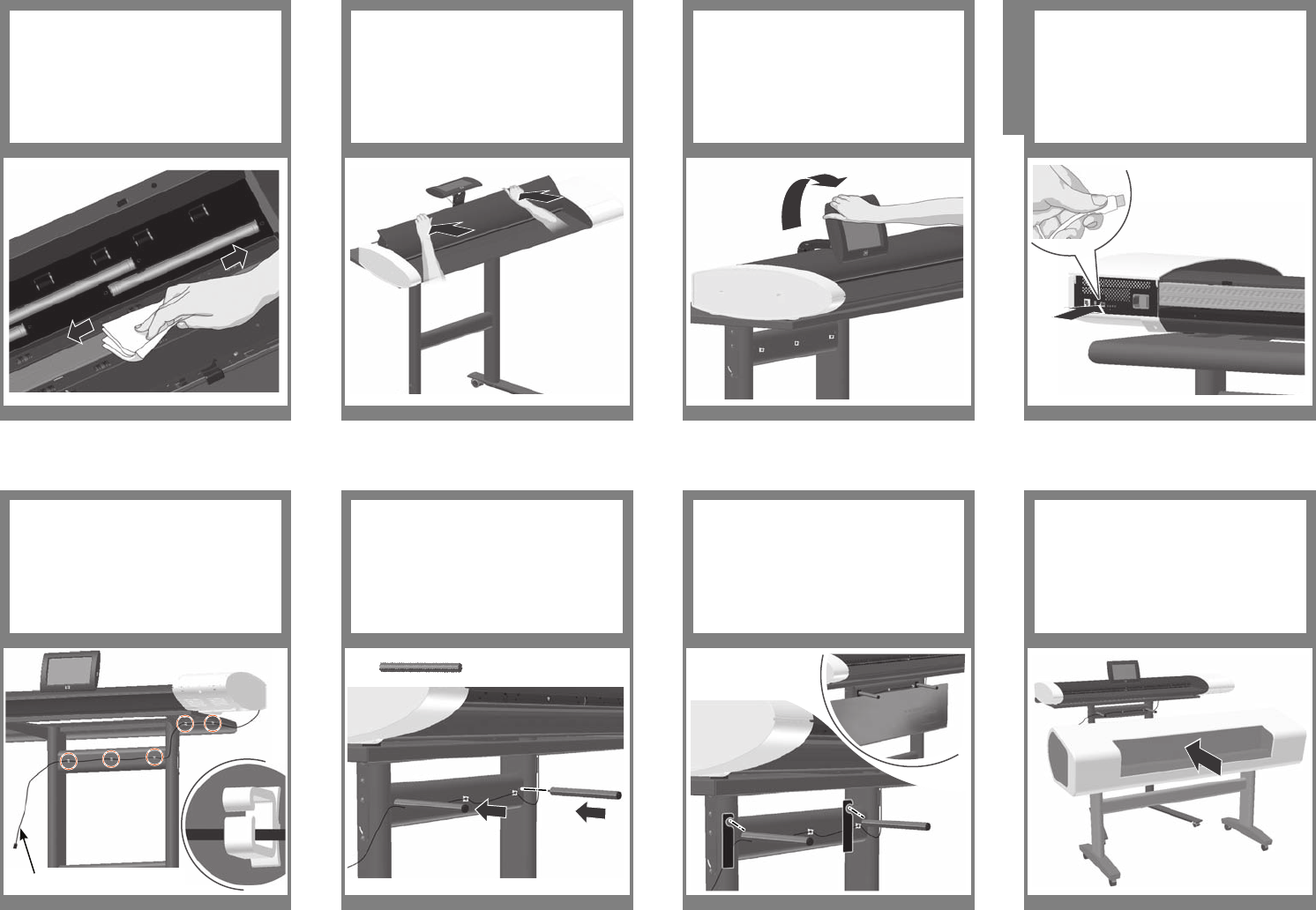

Insert the clips under the Top Tray to
mount the USB cable where shown
below. Mount the cable and let the end
hang from the last clip. The cable will be
connected to the printer in a later step.
Let the end hang from the last clip
Attach the USB cable to the scanner.
22
Screw the stoppers into the holes on the
stand leg structure.
23
Attach the maintenance sheet hang
hooks on the stoppers. Note: This is
where the maintenance sheet is stored
when not in use. It is connected to the
hang hooks with velcro.
24
Slide the assembled printer under the
scanner. The printer’s feet will be posi-
tioned outside the scanner’s feet.
25 26 27 28
X2
Dry the glass fully using a separate
clean, dry lint-free cloth.
Close the scanner lid and gently push it
down to lock it into place.
Pull the touch-screen back down to the
“ready” position.
