Hazard Avoidance
Overview GPS Navigation Flight Planning Hazard Avoidance Additional Features Appendices Index

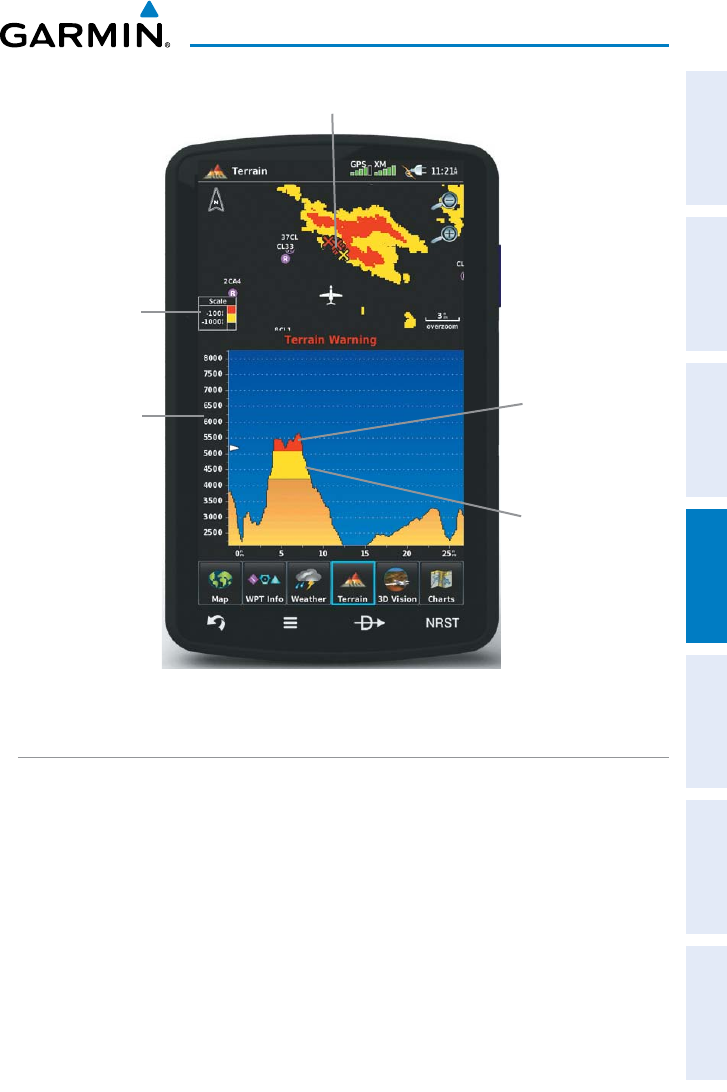

Terrain Profile
View
Terrain
Legend
Red Terrain is
above or within
100 ft below the
aircraft.
Yellow Terrain is
Between the User-
defined Caution
Elevation and
100 ft Below the
Aircraft
Potential Impact
Point
Terrain Map
TERRAIN ALERTS & SETUP
Enabling/Disabling terrain alerts:
1)
From the Main Menu touch the Terrain Icon.
2)
Touch the Menu Icon.
3)
Touch the 'Enable Alerts' or 'Disable Alerts' menu option.
Use the Terrain Setup Menu to set levels for terrain alerts as well as obstacles in or
near your flight path.
•Caution Elevation—The aera 795/796 will provide an alert if the terrain or
obstacle is within the default Caution Elevation or user-defined Caution Elevation.
