MP-4000 TH . Revision 1.2
23
30.1. Parallel Interface
30.2. Specification
The port to the PC is a Parallel port (IEEE12284), which operates with the following
characteristics: Unidirectional (standard centronics SPP) and Bi-directional (EPP).

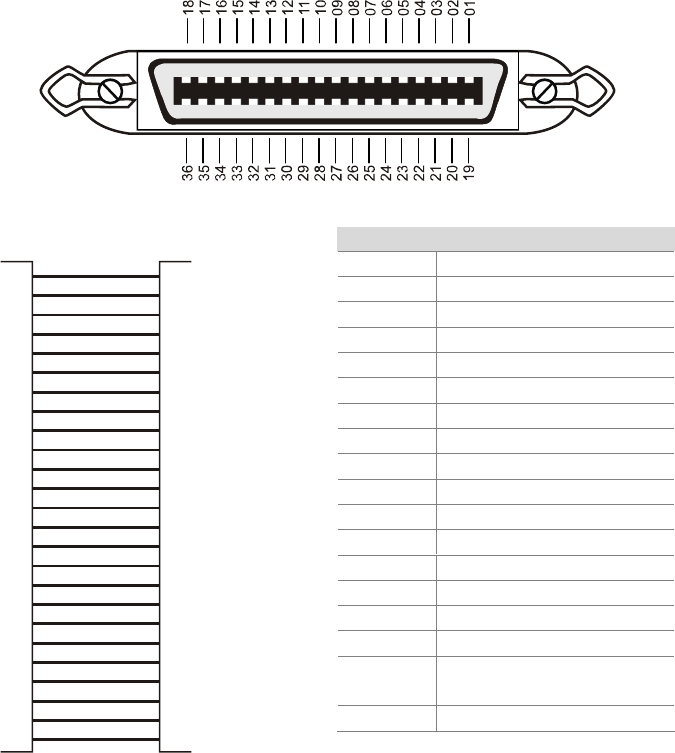

30.3. Cable connection
1
2
3
4
5
6
7
8
9
10
11
12
13
14
32
31
36
33
19, 20
21, 22
23, 24
25, 26
27
28, 29
16, 30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Male
Centronics 36
Male
DB-25
Pin Signal (SPP)
1 nStrobe
2 Data 0
3 Data 1
4 Data 2
5 Data 3
6 Data 4
7 Data 5
8 Data 6
9 Data 7
10 nAck
11 Busy
12 Paper-Out/Paper End
13 Select
14 nAuto-Linefeed
31 nInitialize
32 nError / nFault
36
nSelect-Printer
nSelect-In
19-30 Ground
