The front surface is of brushed stainless steel, and shows fingerprints easily on the textured
finish. To remove, use a cloth with alcohol or spirits. Take care not to allow the volatile fluid to
come into contact with the vinyl stickers on the surface of the front plate.
When wiping the front panel surface, wipe horizontally; in the same direction as the brush finish
texture for the best results.
Internal connections and layout

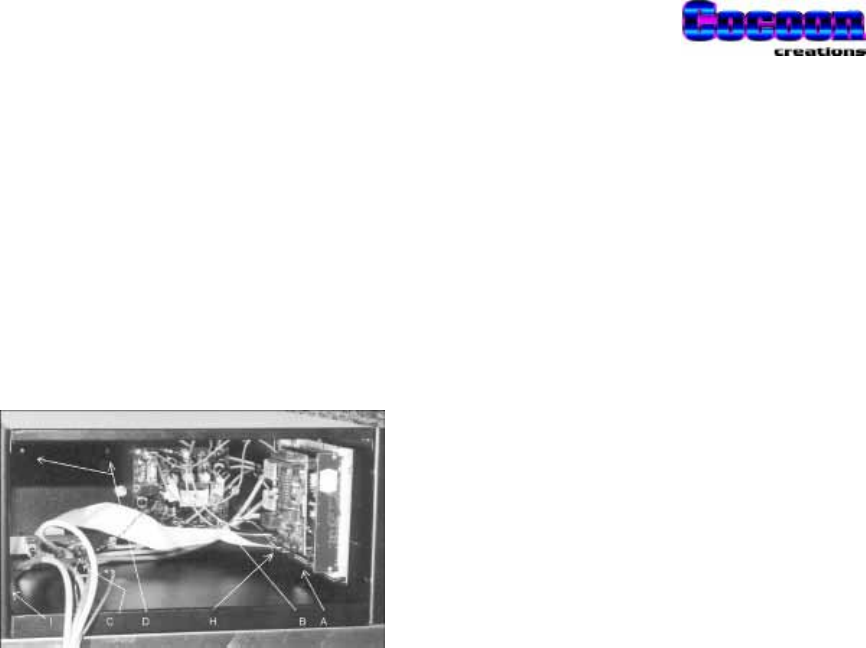

PowerTALK 101 seen from the front, with its faceplate removed
The main elements of PowerTALK 101 can be seen as follows:
A Communications processor 80486
B Power Supply 5V 4A isolated
CLEDplug DB-25
D Spare power supply mounting holes 90 x 90 mm
H Reset button Reset
I Spare communications processor card slot
for future expansion
80486 or Pentium
