Programming Voltage Common to the Minus Output

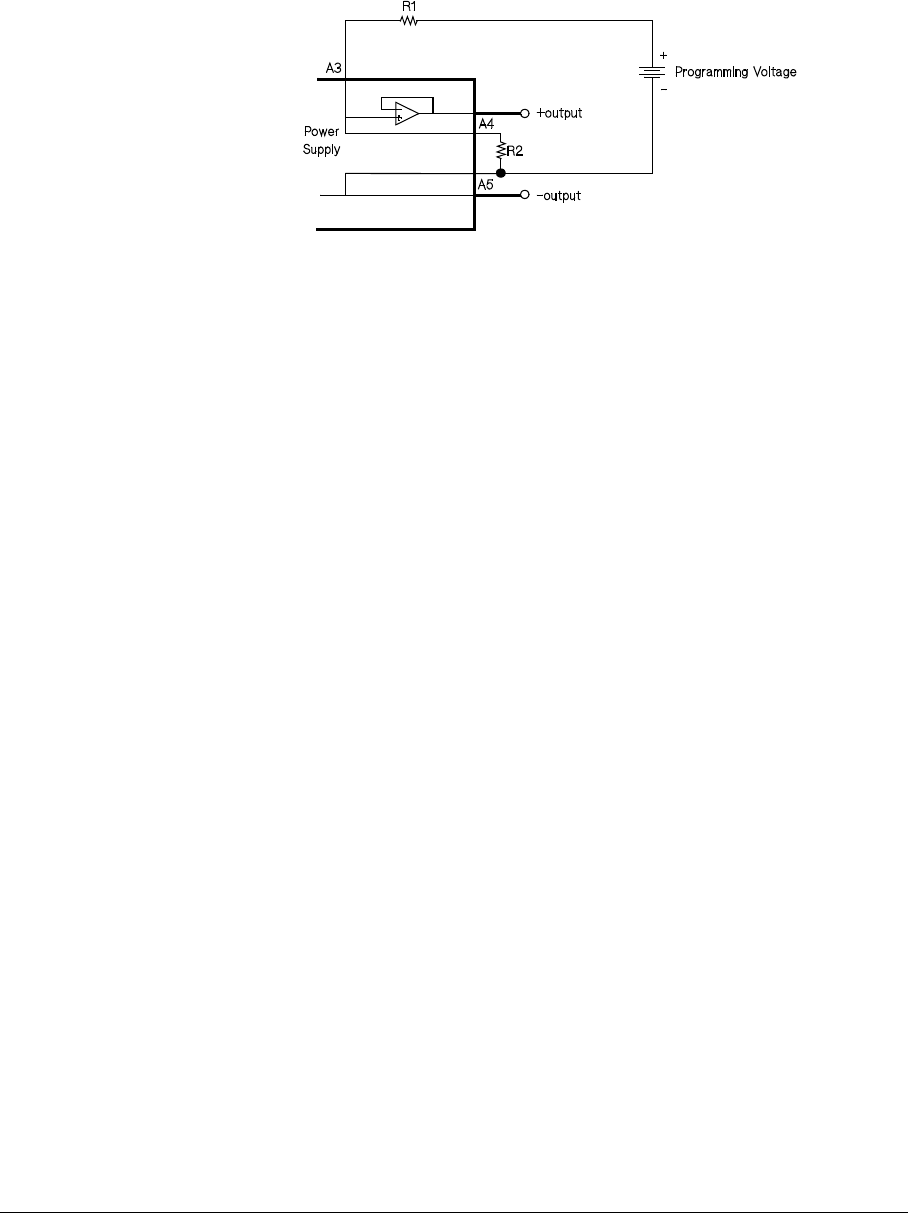

Figure 4
The output will always be the same or less than the programming voltage.
The M/S2 switch must be in the down position. For best results, place a 0.1µF capacitor
in parallel with R2.
V
in
= (R1R2) / R2 x V
out
V
out
= R2 / R1+R2) x V
in
Where V
out
is the power supply output voltage.
V
in
is the programming voltage.
R1 and R2 should be in the 1KΩ to 100KΩ range.
