INTERFERENCE FILTER
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
Refer to page 4-12 for the procedure for servic-
ing the interference filter.
1. Unplug washer or disconnect power.
2. Disconnect the wire connectors from the
interference filter terminals.
3. Set the ohmmeter to the R x 10K scale.
4. Touch the ohmmeter test leads to the
interference filter connector pins. The
meter should indicate approximately
450K Ω.

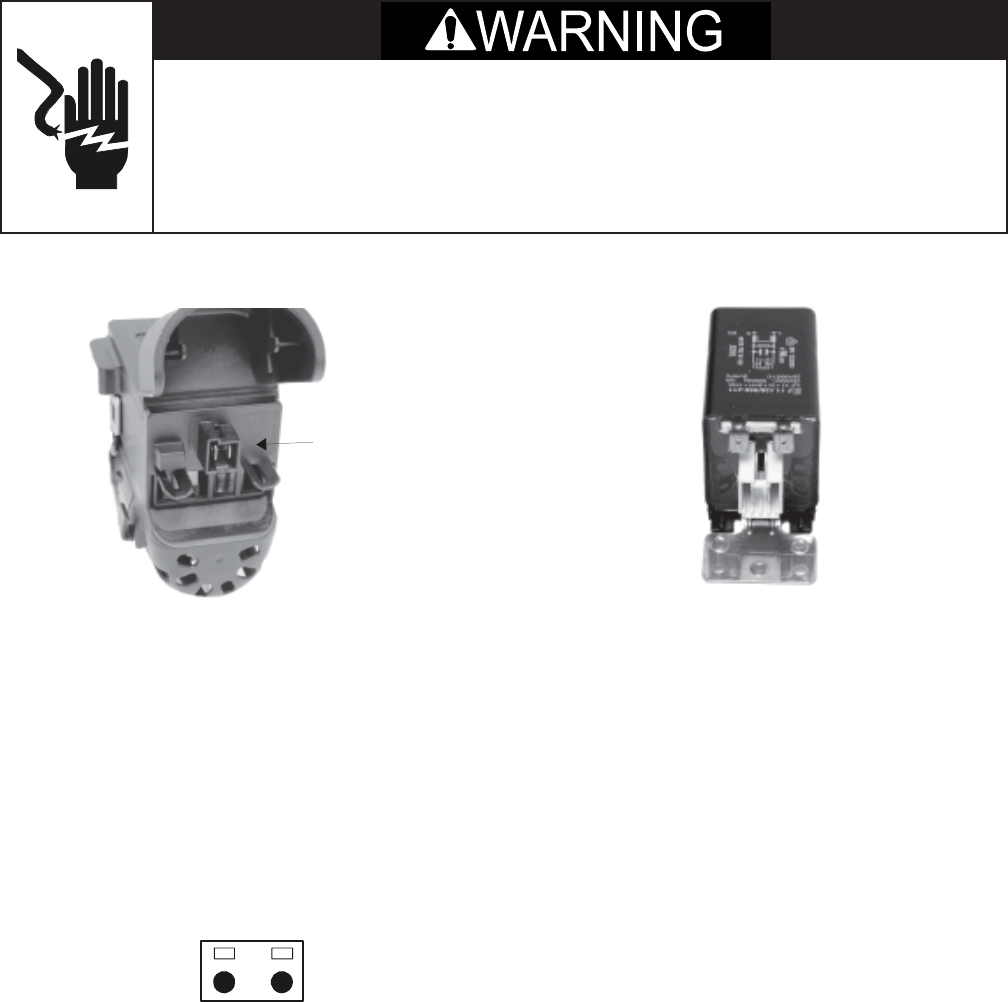

DRAIN PUMP MOTOR
Refer to page 4-18 for the procedure for servic-
ing the drain pump assembly.
1. Unplug washer or disconnect power.
2. Disconnect the drain pump motor connec-
tor from the CCU.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the two
drain pump motor connector pins. The
meter should indicate 15 Ω.
Motor
Terminals
(Connector viewed From Wire End)
