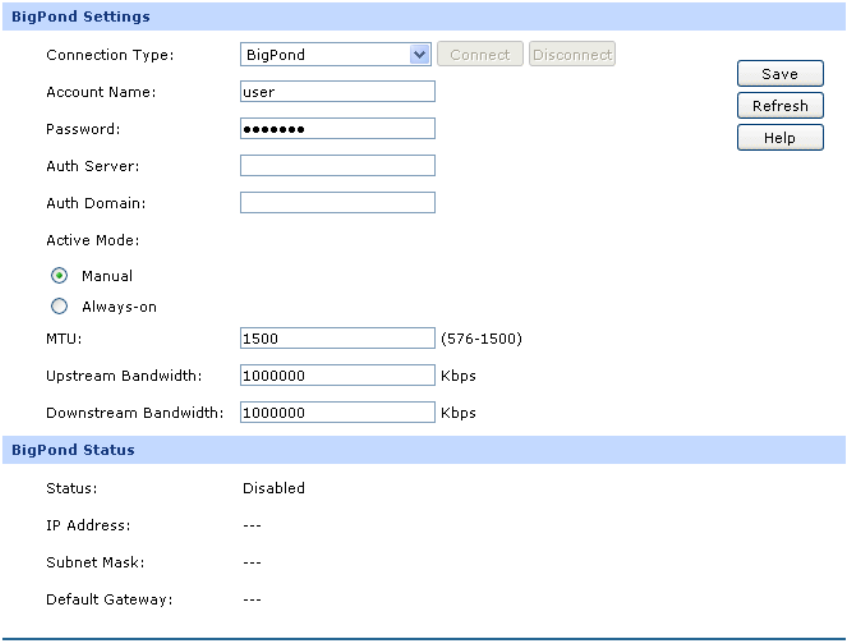

Figure 3-11 WAN Bigpond
The following items are displayed on this screen:
BigPond Settings
Connection Type:
Select BigPond if your ISP provides a BigPond connection. Click
<Connect> to dial-up to the Internet and obtain the IP address. Click
<Disconnect> to disconnect the Internet connection and release the
current IP address.
Account Name:
Enter the Account Name provided by your ISP. If you are not clear,
please consult your ISP.
Password:
Enter the Password provided by your ISP. If you are not clear, please
consult your ISP.
Auth Server:
Enter the address of authentication server. It can be IP address or
server name.
Auth Domain:
Enter the domain name of authentication server. It's only required
when the address of Auth Server is a server name.
-26-
