Gigabit Dual-WAN VPN Router
Interface Description
Interface Description
WAN
The WAN port is designed to connect the Router to the interface provided
by ISP via the RJ45 cable
LAN
The LAN port is designed to connect the Router to the local PCs or
switches by the RJ45 cable
DMZ The DMZ port is designed to connect the Router to the servers
Console
The Console port is designed to connect with the serial port of a computer
or terminal to check and monitor some
simple
system information of the
Router
Reset
Use the button to restore the Router to the factory defaults. With the Router
powered on, use a pin to press and hold the Reset button (about 4~5 seconds).
After the SYS LED goes out, release the Reset button. If the SYS LED is ashing
with a high frequency about two or three seconds, it means the Router is restored
successfully.
Rear Panel

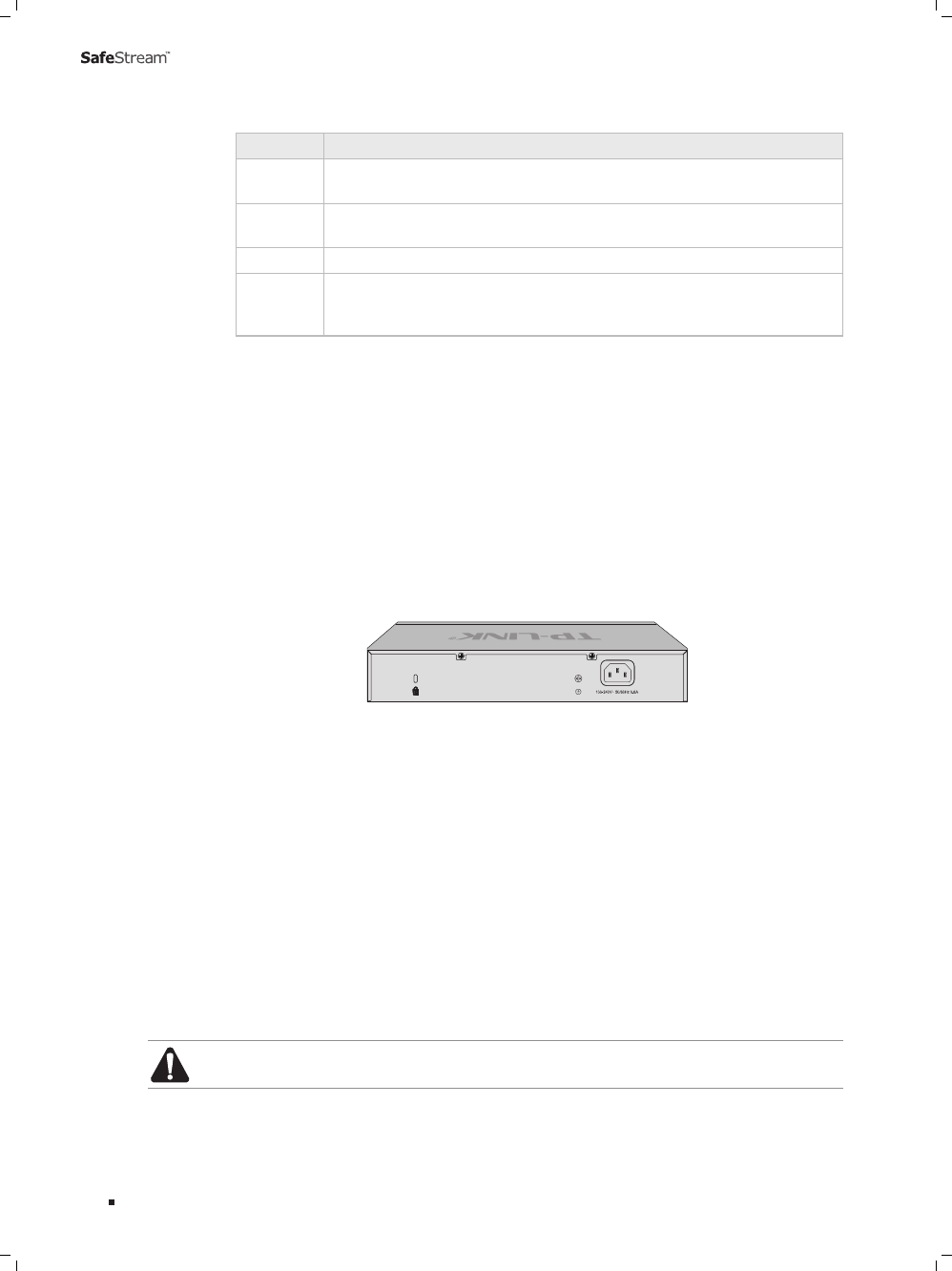

The rear panel of TL-ER6020 is shown as the following figure.
Rear PanelFigure 1-2
Power Socket
Connect the female connector of the power cord here, and the male connector to
the AC power outlet. Please make sure the voltage of the power supply meets the
requirement of the input voltage.
Grounding Terminal
The Router already comes with lightning protection mechanism. You can also ground
the Router through the PE (Protecting Earth) cable of AC cord or with Ground Cable.
For detailed information, please refer to Chapter 3 Lightning Protection.
Kensington Security Slot
The Router provides one security slot.
Caution: Please use the provided power cord.
