4.17 3G card/SIM board 4 Replacement Procedures
2. Remove the following screws and the SIM board from the connector CN9580 on the
system board.
M2.5×4C FLAT HEAD screw ×2
3. Remove the SIM board FPC from the connector CN9880 on the SIM board.
SIM board
SIM board FPC
M2.5x4C FLAT HEAD
CN9880
CN9580

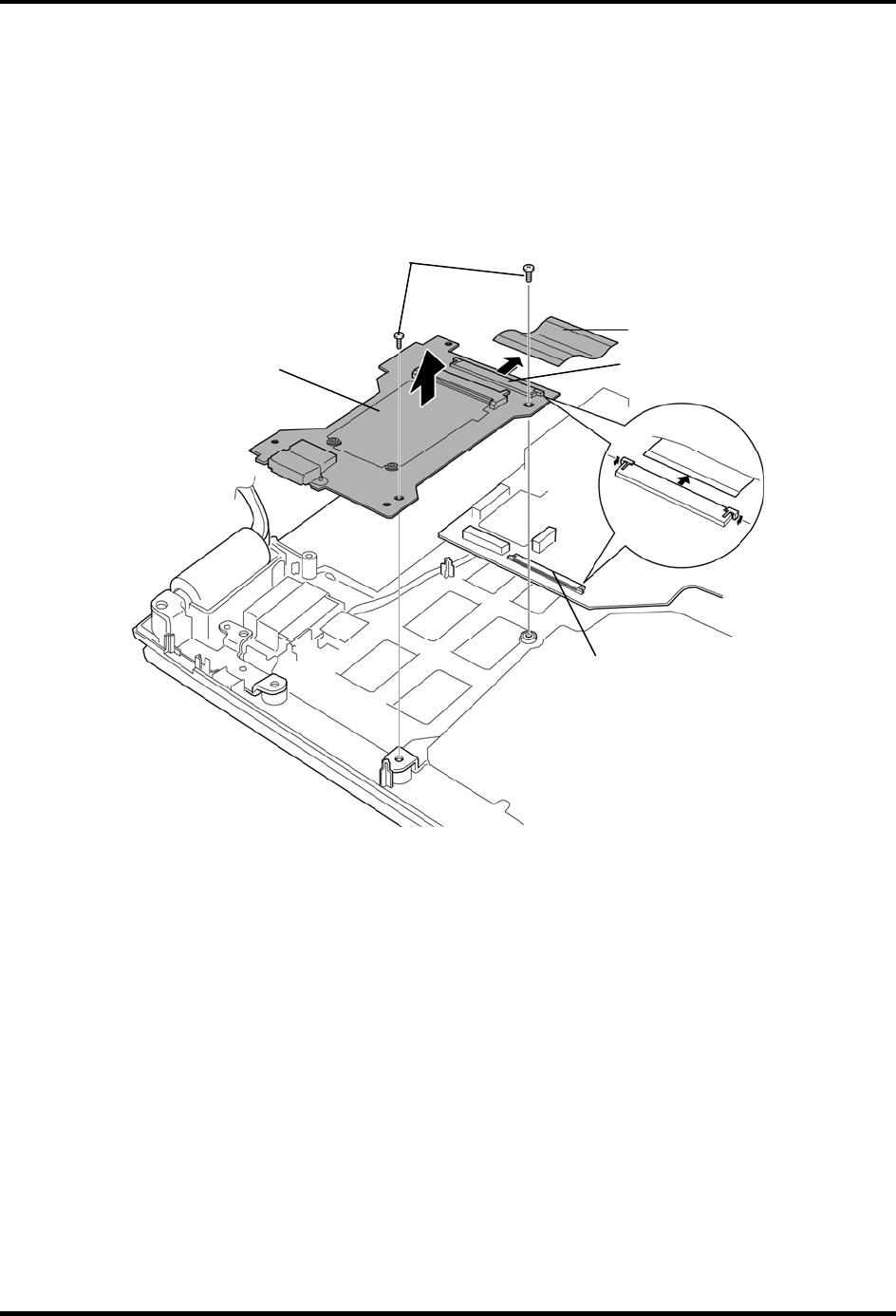

Figure 4-25 Removing the3G card/SIM board (2)
