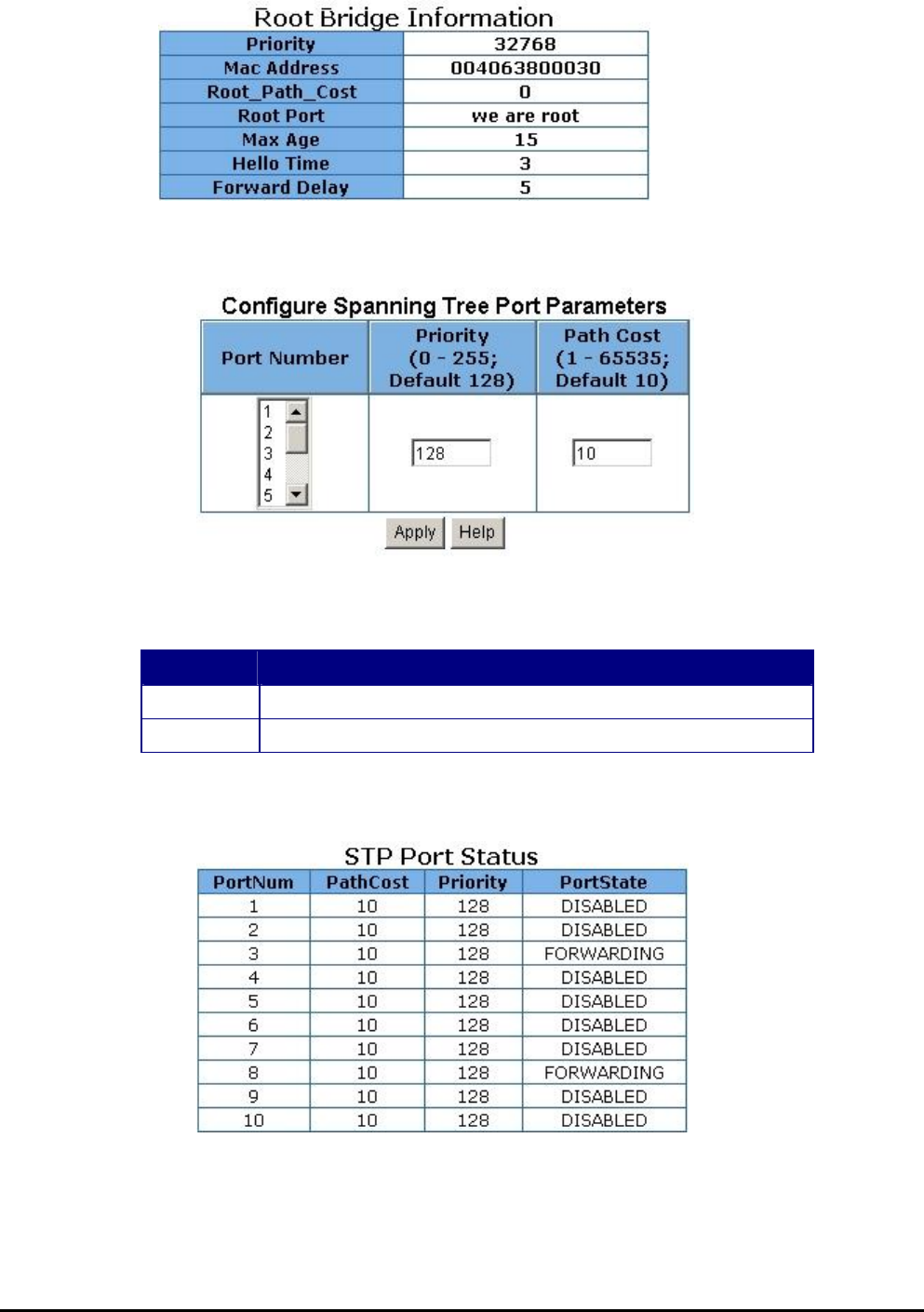

You can view the spanning tree information about Root Bridge. The screen is shown as below:

Figure 5-35 Root Bridge Information Web Page screen

The following parameter can be configured of per port, after you setup completed. Please click “Apply”

button to modify.

Figure 5-36 Configure Spanning Tree Parameters of each port Web Page screen

Please refer to Table 5-2 for per port Spanning Tree Parameters detail description.

Parameter Description

Port Priority Allow to set port priority of per port. The priority range is 0 to 255.

Path Cost Allow to set port cost of per port. The path cost range is 1 to 65535

Table 5-2 Per port Spanning Tree Parameters detail description

You can view spanning tree status about the Switch. The screen is shown as below:

Figure 5-37 STP Port Status Web Page screen

You can click” Help” button; the following screen in Figure 5-38 appears.
