A.3 Install the Mini-GBIC module

Please follow these steps to install the Mini-GBIC modules:

1. Power on the Gigabit Ethernet Switch and place it on a at surface.

Install the new Mini-GBIC modules by inserting it into the slots and

sliding it in until it stops (See Figure A-2). Press it rmly until you

feel the module snap into place. Never force, twist or bend the Mini-

GBIC modules. The Mini-GBIC module slides in smoothly and the

Gigabit Ethernet Switch will automatically detect the new module.

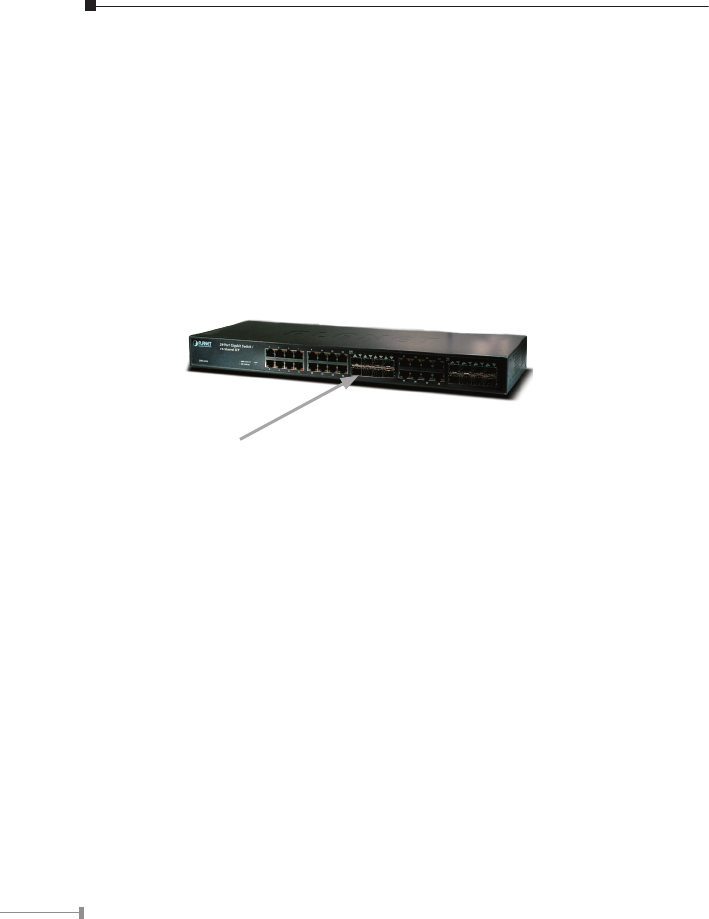

Figure A-2 Insert the Mini-GBIC modules

2. After the ber connection was built successfully. Check the LEDs to

verify that if there is a link and a proper connection at the port.
