BASIC CONNECTIONS

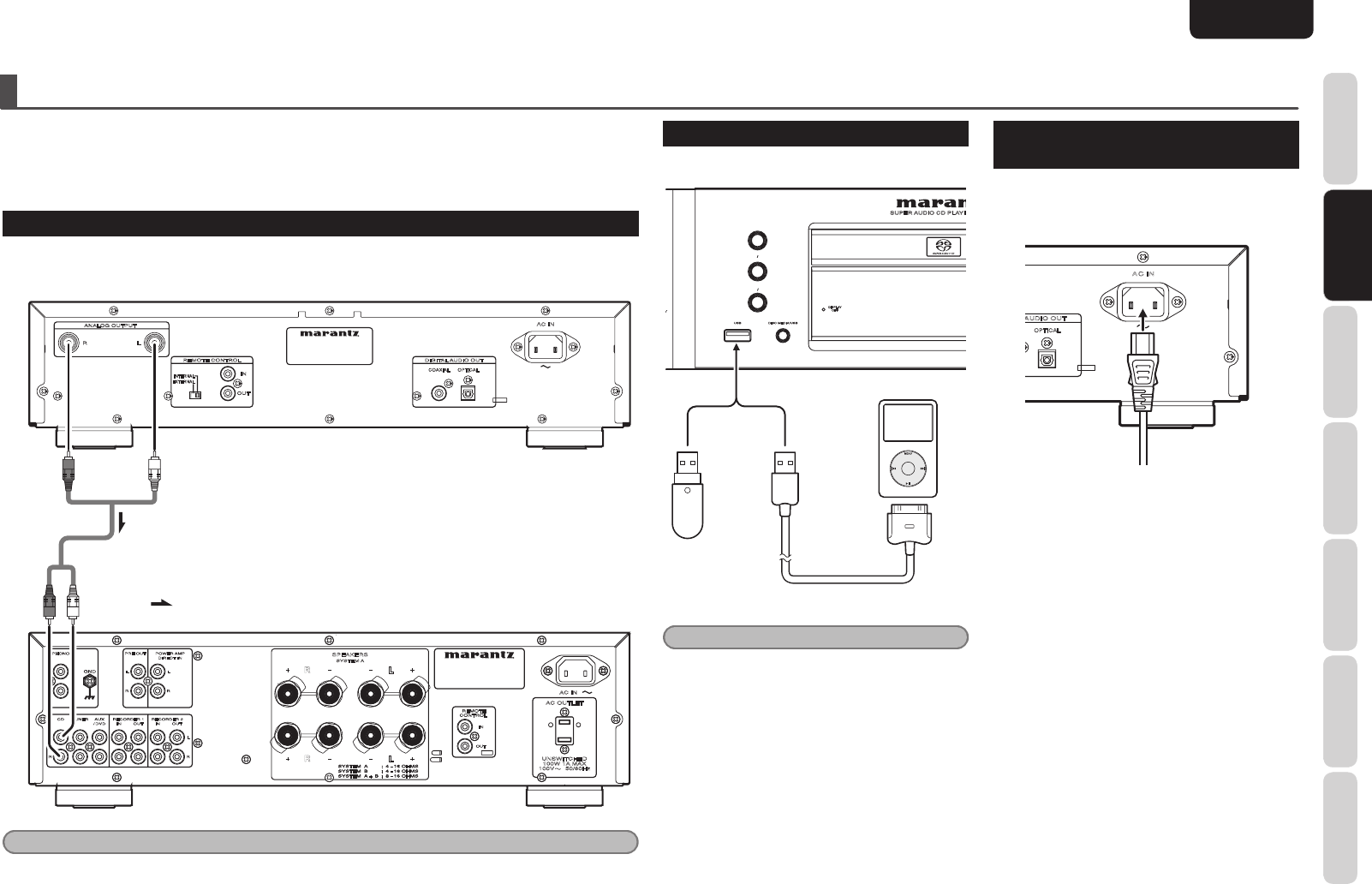

This CD player is connected to an amplifier, CD recorder and other components for use. To ensure that the
components are connected properly, refer to the instruction manuals that come with the components to be
connected.
Before connecting the components, be absolutely sure to turn off their power.
CONNECTING TO AN AMPLIFIER
Use the audio connecting cord to connect the player with a stereo amplifier or AV amplifier.
When making the connections, insert the plugs securely into the connectors. Failure to insert the plugs
securely may result in noise.
L
R
GND
CD AUX
/
DVD
TUNER
OUTIN
RECORDER 1
OUTIN
RECORDER 2
R
L
L
R
PHONO
AC IN
AC OUTLET
UNSWITCHED
100W 1A MAX
100V 50/60Hz
OUT
IN
REMOTE
CONTROL
R
L
POWER AMP
DIRECT IN
PRE OUT
R
L
R
SPEAKERS
SYSTEM A
L
R L
AC IN
DIGITAL AUDIO OUT
IN
OUT
REMOTE CONTROL
ANALOG OUTPUT
R L
OPTICALCOAXIAL
INTERNAL
EXTERNAL
(White)
(White)
Amplifier
(Red)
: Signal flow
(Red)
Audio connecting cord (supplied)
Caution:
Do not connect the player to the PHONO input connectors on the amplifier.
USB MEDIA/iPod CONNECTION
Connect the SA8003 to USB media/iPod.
DISPLAY
OFF
SUPER AUDIO CD PLAY
Supplied iPod cable
Caution:
• Connect the USB media/iPod while in power off
or when the input source is something other than
USB. Connecting/disconnecting USB memory
when the input source is USB and the power is on
may damage the USB memory.
• When using an USB device, do not use an USB
extension cable.
CONNECTING THE POWER
SUPPLY
1. Plug the power cable into AC IN jack on the
back panel.
2. Plug the power cable into an AC outlet.
3. Turn on the power switch of the audio unit
(amplifier, etc.) that is connected with this
unit. Set the selector on the connected unit
to this unit.
