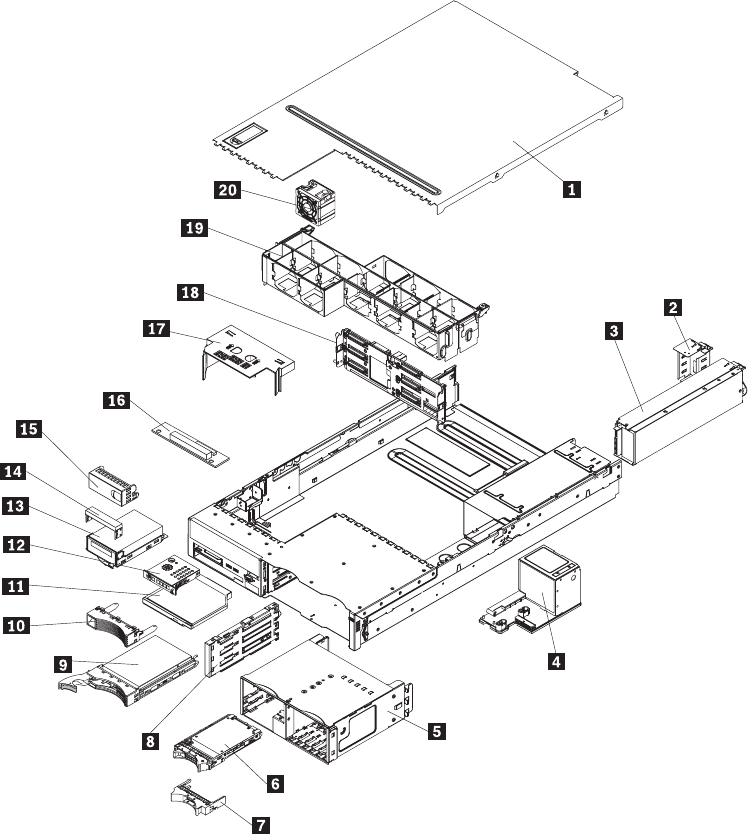

1 Cover 11 CD/DVD drive
2 Power-supply filler 12 Operator information panel
3 Power supply 13 Optional tape drive
4 Power backplane 14 Tape drive space filler
5 2.5-inch drive cage with hard disk
drive backplane
15 Tape drive filler
6 2.5-inch hard disk drive 16 CD/DVD media backplane
7 2.5-inch filler panel 17 Microprocessor air baffle
8 3.5-inch cage divider 18 3.5-inch hard disk drive backplane
9 3.5-inch hard disk drive 19 Fan bracket assembly
10 3.5-inch filler panel 20 Fans (5 or 10)
16 ThinkServer RD120 Types 6444, 6445, 6446, and 6447: User Guide
