Removing and replacing the power supply
Attention
Never remove the cover on a power supply or any part that has the
following label attached.
Hazardous voltage, current, and energy levels are present inside any
component that has this label attached. There are no servicable parts inside
these components.
1. Remove the cover. See “Removing the cover” on page 92.

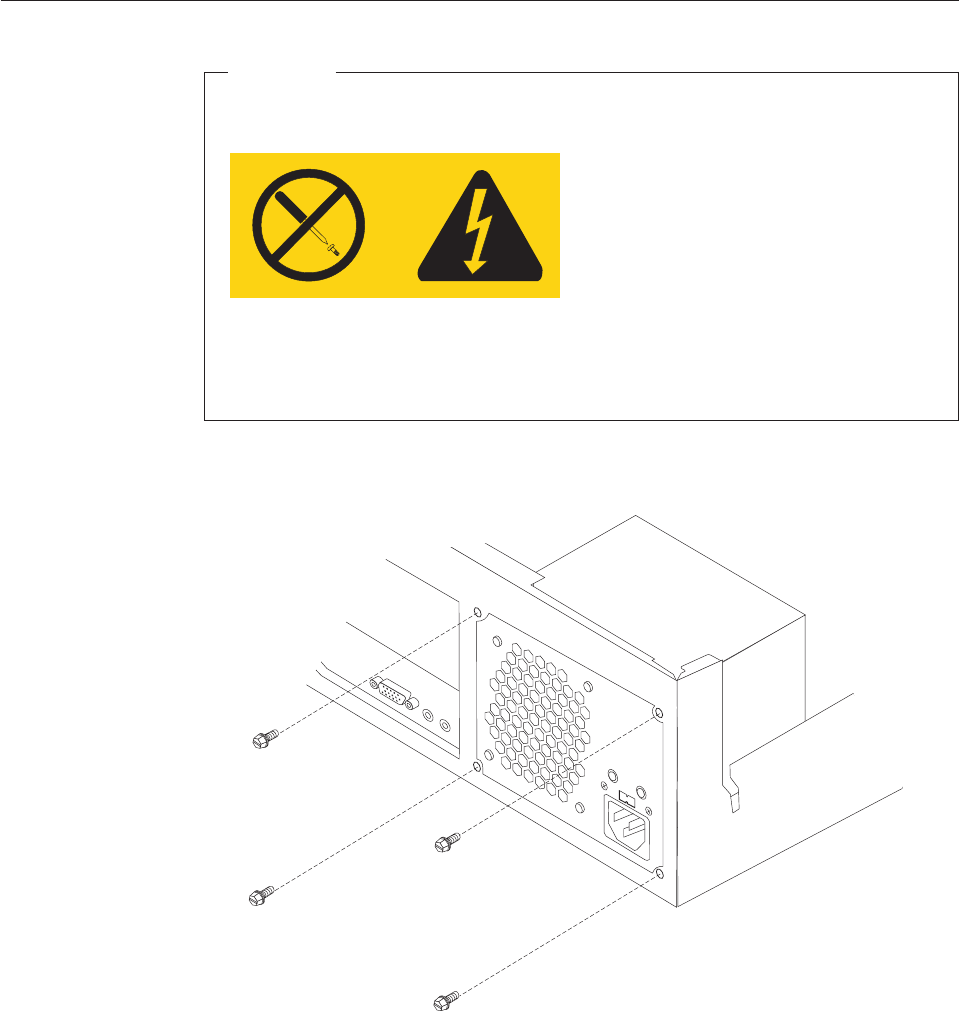

2. Remove the four screws at the rear of the chassis.
3. Rotate the drive bay assembly upward to gain access to the system board.
Note of the routing of the power supply cables.
Chapter 8. Replacing FRUs (Types 8095, 8141, 8142, 8145, 8420, and 8421) 99
