5

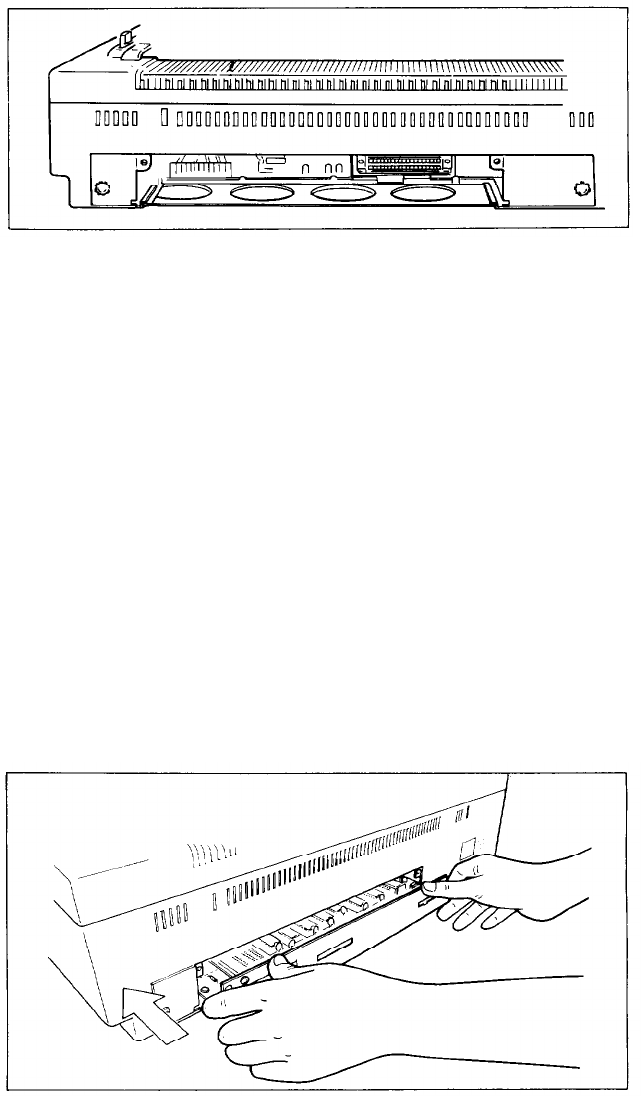

Figure 1-7. Removing the protective plate
Installing the Interface Card
If your printer already has the interface card installed, go ahead
to Step 6. (Look back to Step 1 to see how the card looks when it
is installed.)
Warning:
If you have been operating the printer, first turn it off, then
unplug it before attempting to install or remove the inter-
face card.
First, use a Phillips screwdriver to remove the two screws
shown above. Set them aside carefully so they won’t get lost.
Take off the U-shaped protective metal plate to gain access to the
printer. Remove the interface card from its package, taking care
not to touch the electrical parts.
Now, ease the card into the printer by sliding it into the
grooves as shown below. The metal back plate of the card should
be toward you and the electrical parts should be on too.
Figure Z-8. Sliding in the interface card
11
