PARTS AND HARDWARE LISTING

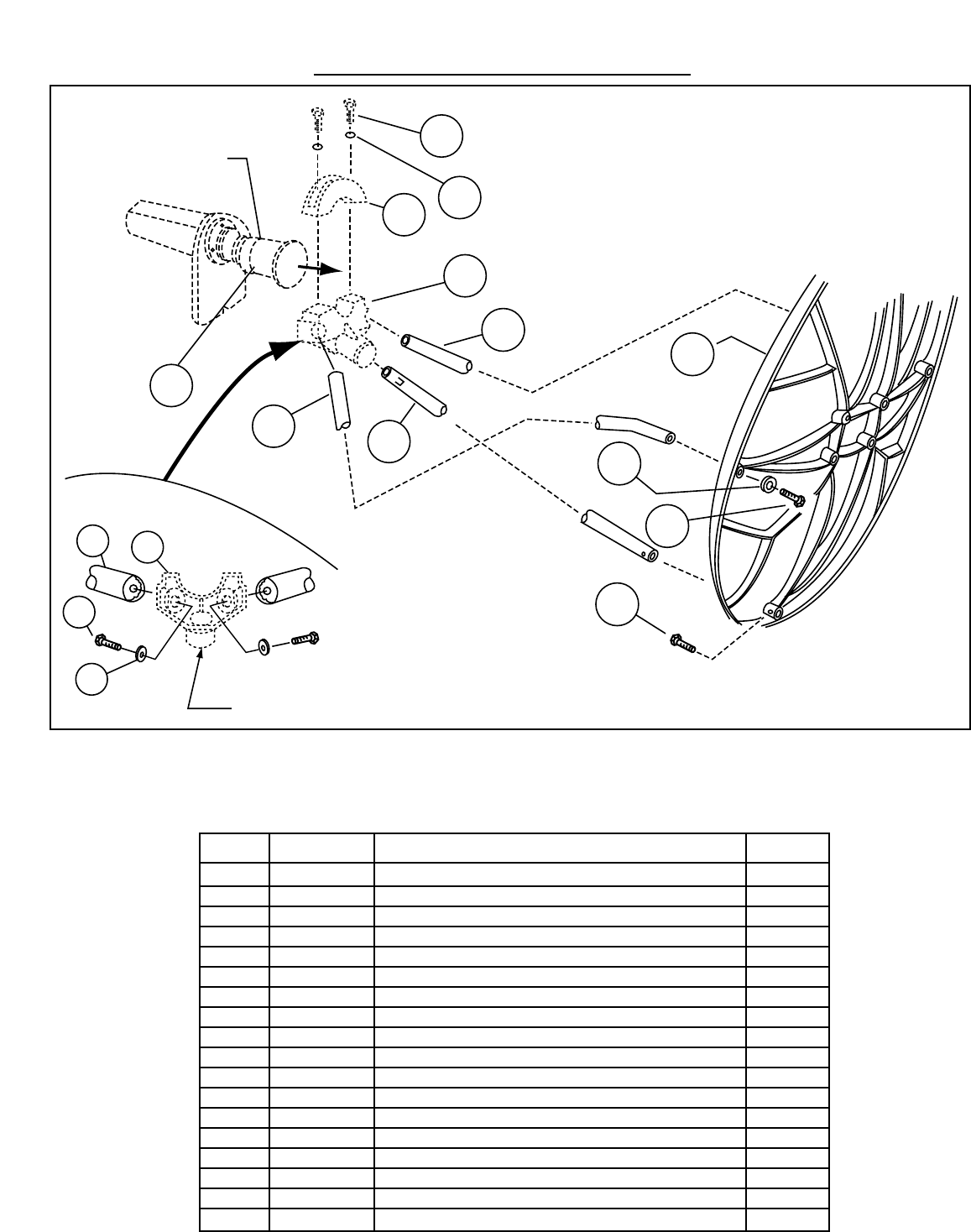

FIG. 4.1 - ANTENNA, ANTENNA FEED (LNB) & FEED SUPPORT LEGS
ITEM PART NO. DESCRIPTION QTY.
4 2020329-07 LEG BOTTOM (.90m) 1
4 2020329-02 LEG-BOTTOM-FEED (1.0m) 1
4 2020329-03 LEG-BOTTOM-FEED (1.2m) 1
5 3040642-02 REFLECTOR-SMC-1.0m 1
5 3040646-02 REFLECTOR-SMC-1.2m 1
5 3040681-02 REFLECTOR-SMC .90m 1
6 6010100-05 LEG-SIDE-FEED (1.0m) 2
6 6010100-06 LEG-SIDE-FEED (1.2m) 2
6 6010100-07 LEG-SIDE-FEED (.90m) 2
7 2060008-01 BOLT-HEX M6 x 30 4
8 2509010-01 WASHER, FLAT ¹⁄₄ x ⁷⁄₈”2
9* 3040667-04 BLOCK-JUNCTION 1
10 2502700-01 WASHER-FLAT ¹⁄₄ x ³⁄₄”O.D. 2
11* 3040663-01 CLAMP-HALF-JCT. 1
12* 2050610-20 BOLT HH M6 x 20 2
13* 2480600-01 WASHER-FLAT M6 x ¹⁄₂”O.D. 2
14* VARIES KU-FEED ASSY. 1
15 2060009-01 SCREW-TPG-SPL M6 1
*Provided in feed assembly.
