8 Installing your Server Interface Module

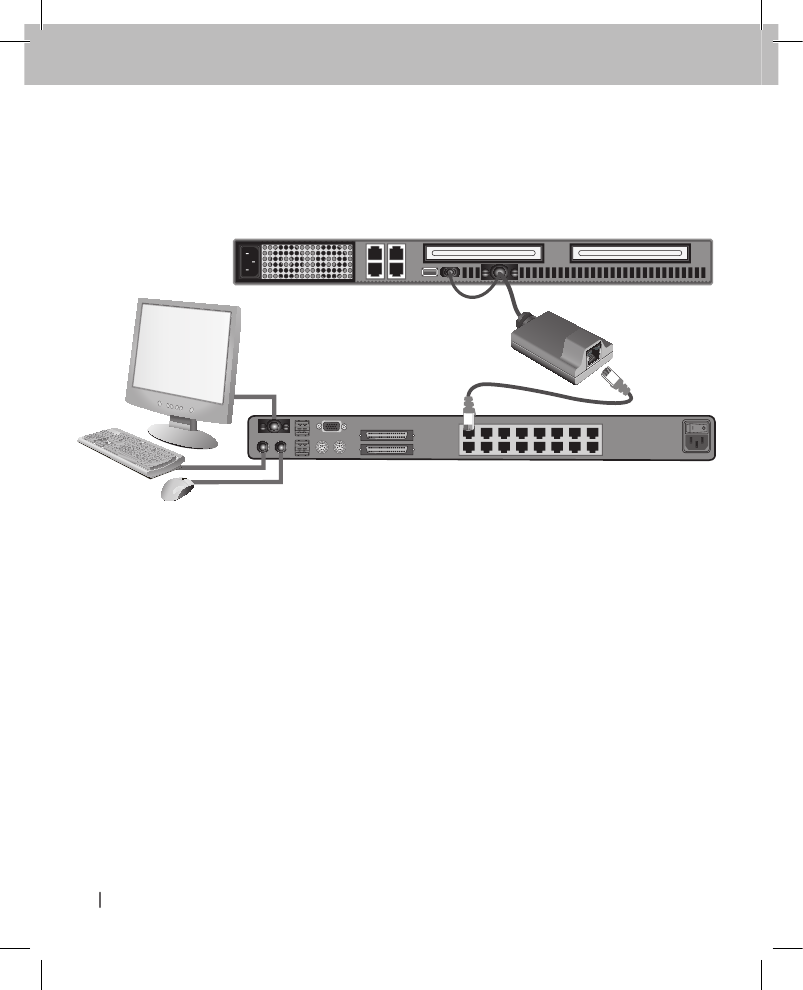

Step 5 Connect the Quad-Bus KVM-over-IP or CAT5 KVM Switch to the
Server Interface Module using the included Belkin CAT5e Patch Cable
or another CAT5 cable.
Server
Step 6 Repeat steps 2 through 5 for each additional USB server you wish
to connect.
Step 7 Power up all connected servers.
Step 8 Power up your Quad-Bus KVM-over-IP or CAT5 KVM Switch.
You are now ready to use your OmniView Quad-Bus Server Interface Module.
If you have any problems during installation, please refer to the OmniView
Quad-Bus KVM-over-IP or CAT5 KVM Switch User Manual.
Note:
Your server should recognize your Server Interface Module and automatically install the HID USB
driver if necessary.
