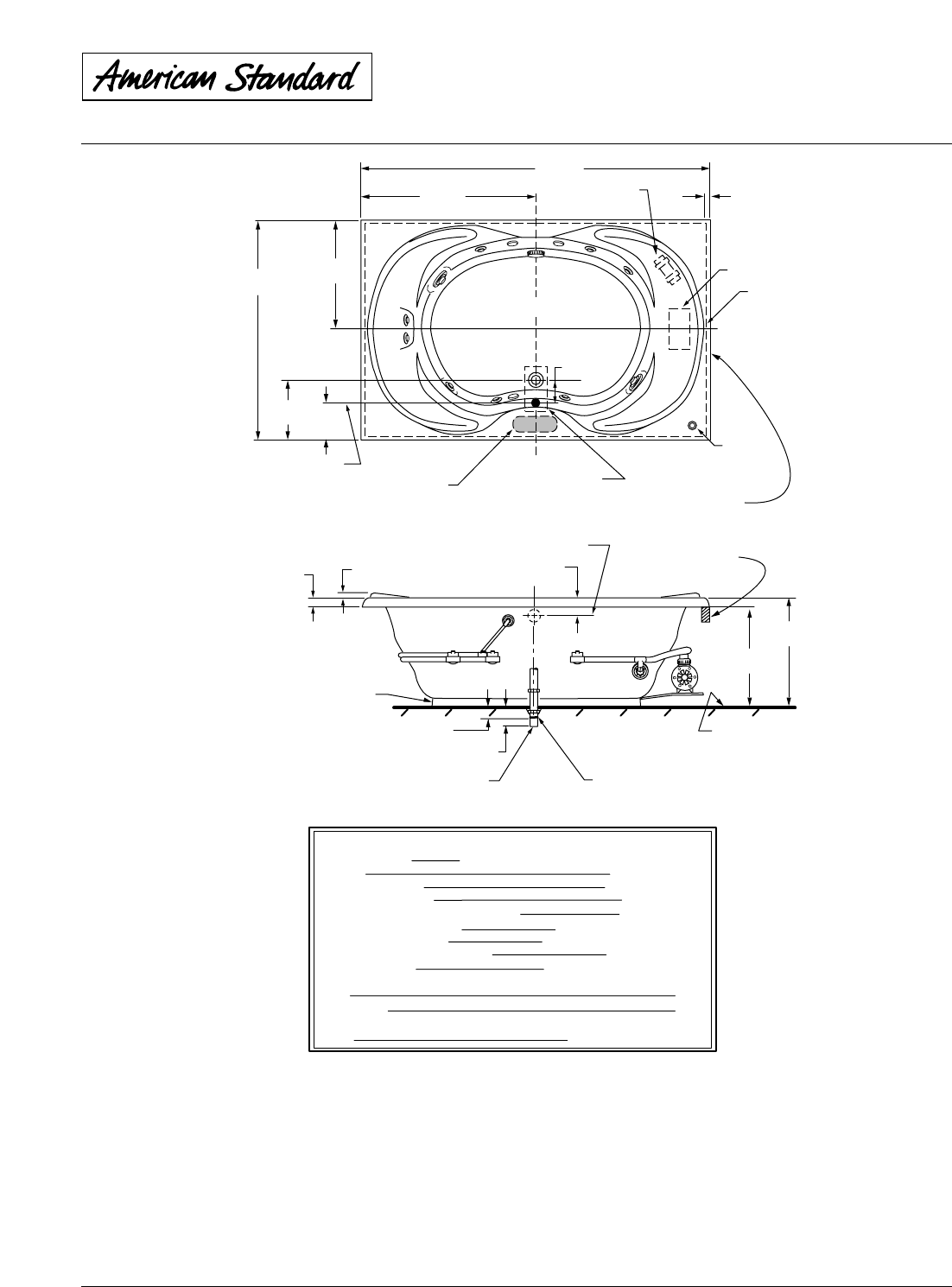

SAVONA ELITE™ 6’
WHIRLPOOLS BY AMERICAN STANDARD
HIGH GLOSS ACRYLIC
© 2003 American Standard Inc.
1810mm
(71-1/4)
905mm
(35-5/8)
C/L
19mm
(3/4)
TYP.
1105mm
(43-1/2)
552mm
(21-3/4)
305mm
(12)
140mm
(5-1/2)
508mm
(20)
559mm
(22)
178mm
(7)
OUTLINE OF
1772mm X
1067mm
(69-3/4 X 42)
CUTOUT
ON/OFF
SWITCH
PUMP
PROVIDE ACCESS
TO PUMP FOR SERVICE
ON ALL INSTALLATIONS
229mm X 305mm
(9 X 12) FLOOR
CUTOUT
RECOMMENDED
FITTING LOCATION
64 X 279mm (2-1/2 X 11)
●
C/L OF 1-1/2 O.D.
DRAIN OUTLET
C/L OF OVERFLOW
51mm
(2)
38mm
(1-1/2)
89mm
(3-1/2)
■ LEVELING STRINGER
NOT FOR SUPPORT
ROUGH
FLOOR
1-1/2 O.D. TAILPIECE
INTEGRAL
FEET
89 mm
(3-1/2)
44 mm
(1-3/4)
1-1/2 N.P.T.M.
THREADS
IN-LINE HEATER
REMOVABLE
BLANK
GENERAL SPECIFICATIONS FOR 2901E WHIRLPOOL
71-1/4 x 43-1/2 x 22 In.(1810 x 1105 x 559mm)
152 Lbs. (68 Kg.)
936 Lbs. (421 Kg.)
94 Gal. (356 L)
86 Gal.(326 L)
44 x 28 In. (1118 x 711mm)
67-1/2 x 33 In. (1715 x 838mm)
16-1/4 In. (413mm)
43 Lbs./Sq.Ft. (211 Kgs./Sq.m)
27.8
61.5
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
WHIRLPOOL MIN. OPERATING VOL.
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
CUBE (FT
3
)
WHIRLPOOL ELECTRICAL SPECIFICATIONS
2.1 HP, 14.4 AMPS, 120V.PUMP
NOTES:
BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND OR PENINSULA TYPE INSTALLATION. SUMP OF BATH IS
SUPPORTED BY INTEGRAL FEET. NO ADDITIONAL SUPPORT REQUIRED. ENCLOSING MATERIALS BY OTHERS.
IF INSTALLING A DECK-MOUNTED FITTING, BEFORE DRILLING ANY HOLES: CHECK FOR INTERFERENCE WITH CIRCULATING SYSTEM PIPING
AND DRAIN OVERFLOW. MOUNTING HOLES DRILLED BY INSTALLER.
OPTIONAL TILING BEAD KIT No. TILE-BEAD AVAILABLE AND MUST BE ORDERED SEPARATELY.
REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1 / CSA Certified.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaflet.
■
●
